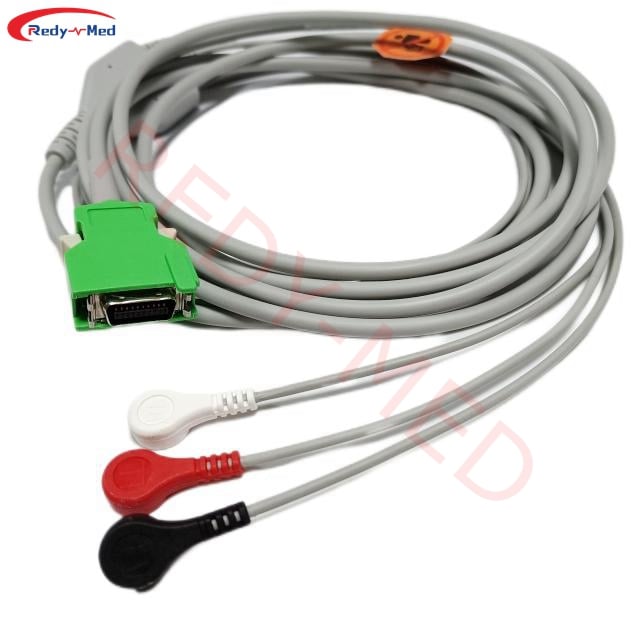

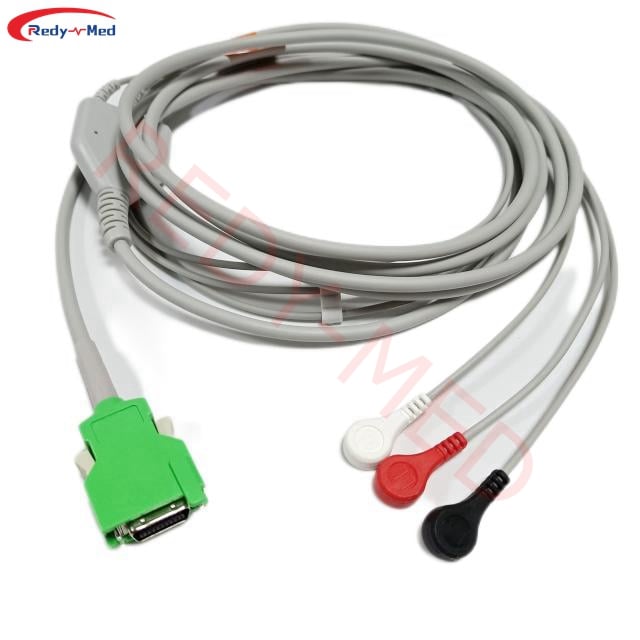

Home / Products / ECG / One-Piece ECG Cable
| Category | ECG |
|---|---|
| Certifications | FDA, CE, ISO13485,SFDA |
| Connector Distal | Green, DB 14-pin Connector |
| Connector Proximal | Pinch/Grabber/Snap |
| Latex-free | Yes |
| Lead Cable Color | Gray |
| Lead Cable Diameter | 2.6 mm |
| Lead Cable Length Limb | 90cm |
| Lead Cable Length V | 90cm |
| Lead Cable Material | TPU Jacket |
| Lead Color Coding | AHA/IEC |
| Lead Number | 3 Lead/ 5 Lead |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult/Pediatric |
| Resistance | 43K Ohms |
| Sterile | No |
| Total Cable Length | 3.6m |
| Trunk Cable Color | Gray |
| Trunk Cable Length | 2.5m |
| Trunk Cable Material | TPU Jacket |
| Warranty | 6 months |
| Weight | 0.2KG |
| Manufacturer | Model |
|---|---|
| Nihon Kohden | Life Scope OPV-1500, Life Scope N OPV-1500K |
Product No:
| 3 Lead,AHA,Snap | EC203SA-016 |
| 3 Lead,IEC,Snap | EC203SI-016 |
| 3 Lead,AHA,Clip | EC203PA-016 |
| 3 Lead,IEC,Clip | EC203PI-016 |
*Disclaimer: All the registered trademarks, product names, models, etc. shown in the above contents are owned by the original holder or the original manufacturer. This is only used to explain the compatibility of the REDY-MED products, and nothing else! All the above information is for reference only, and should not be used as a working guide for medical institutions or related units. Otherwise, any consequences will be irrelevant to the company.
