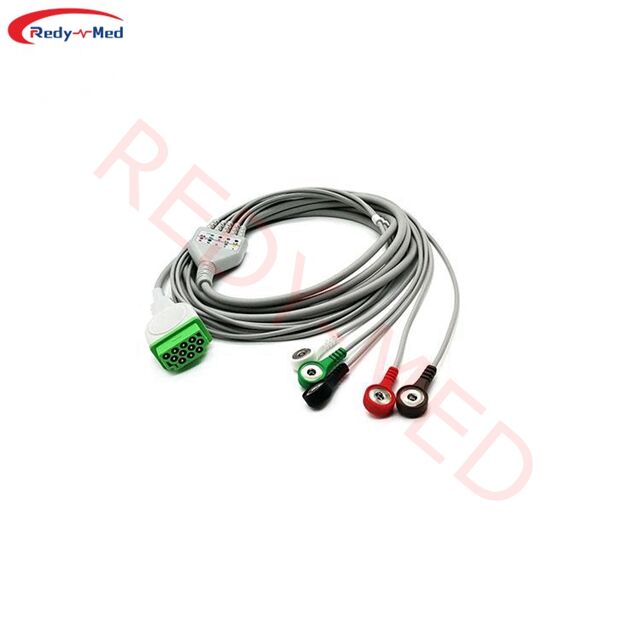

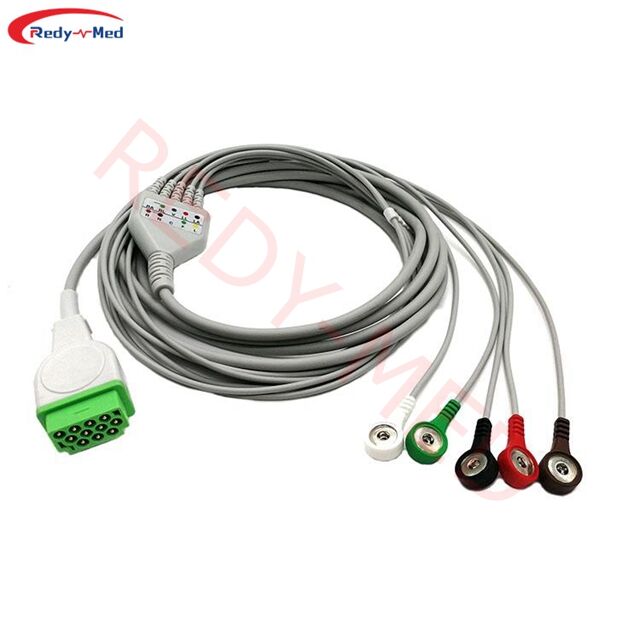

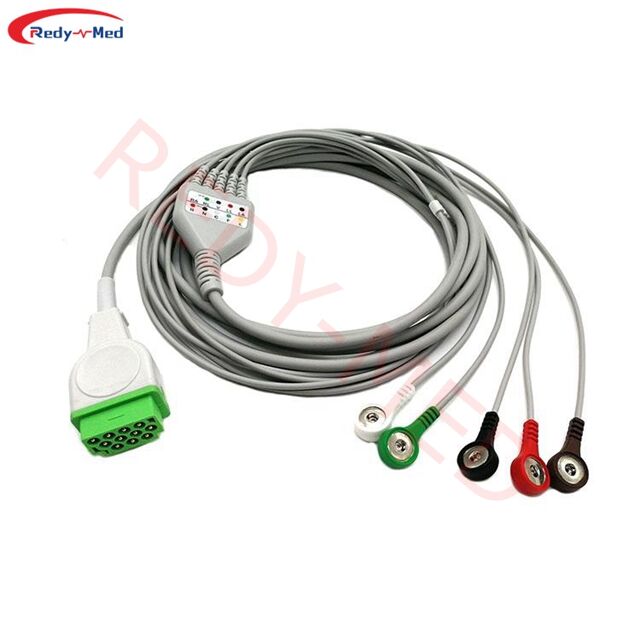

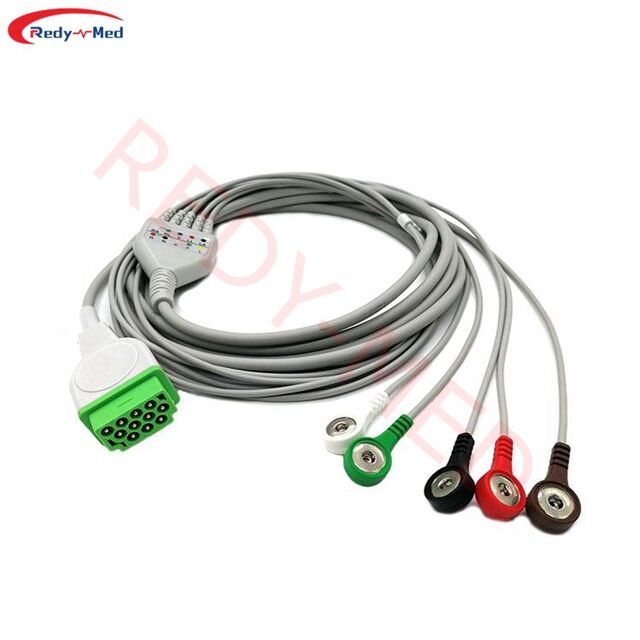

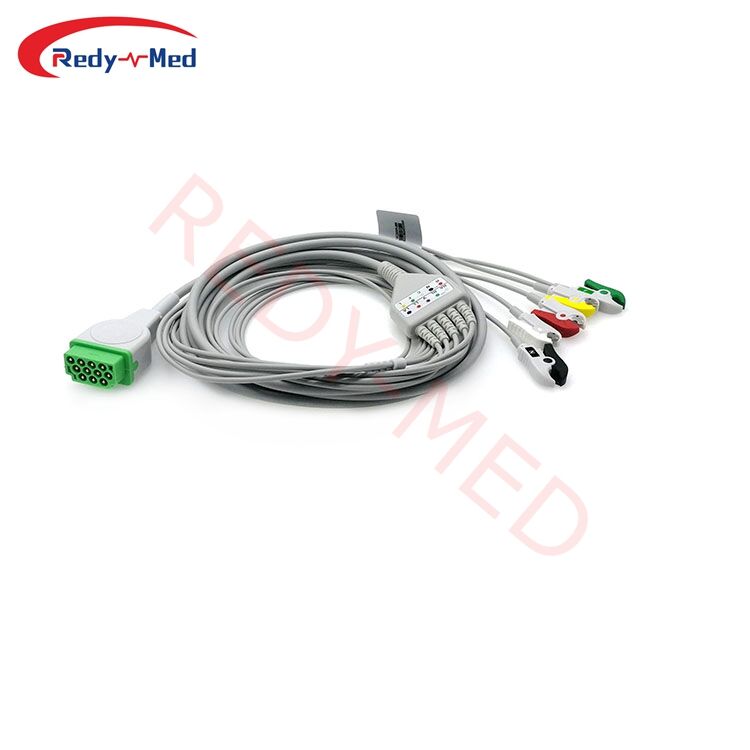

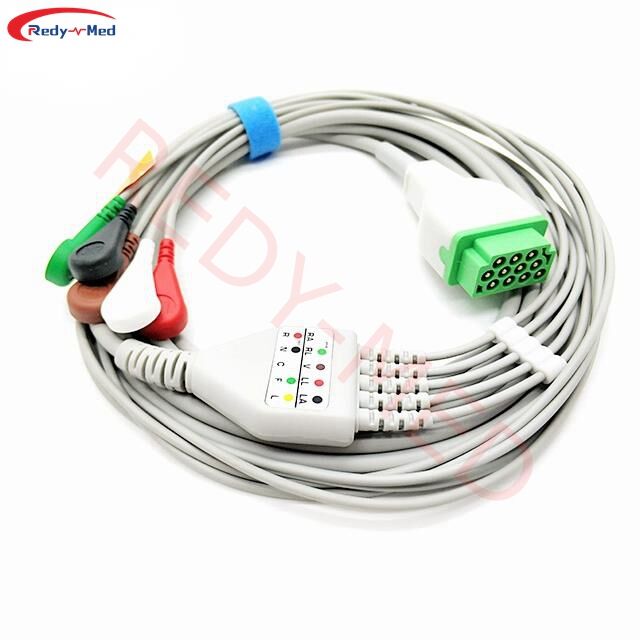

Home / Products / ECG / One-Piece ECG Cable
| Category | ECG |
|---|---|
| Certifications | FDA, CE, ISO13485 |

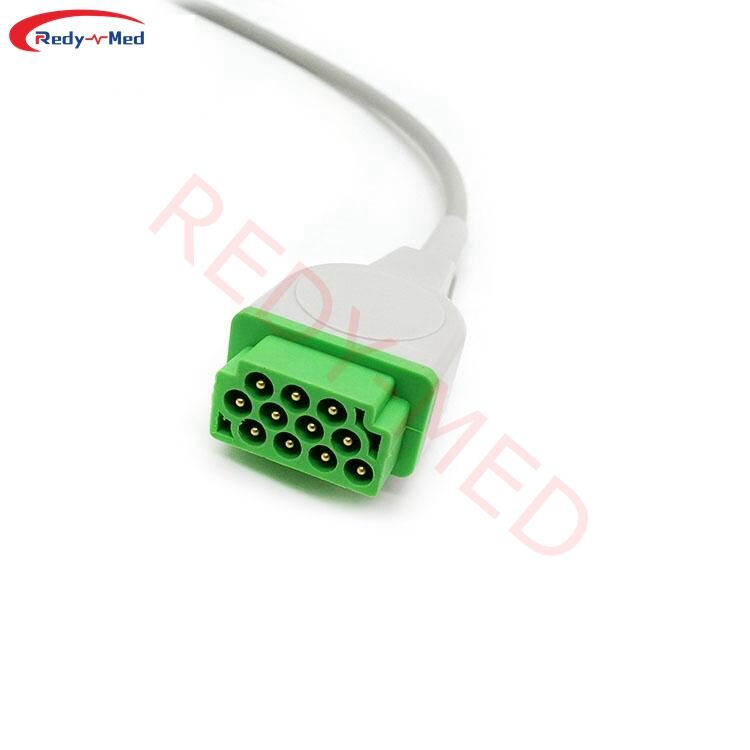

| Connector Distal | Rectangular, Green, 11-pin GE Connector |
| Connector Proximal | Pinch/Grabber,Snap |
| Latex-free | Yes |
| Lead Cable Color | Gray |
| Lead Cable Diameter | 2.6 mm |
| Lead Cable Length Limb | 3 ft |
| Lead Cable Length V | 3 ft |
| Lead Cable Material | TPU Jacket |
| Lead Color Coding | AHA/IEC |
| Lead Number | 3 Lead/ 5 Lead |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult |
| Resistance | No |
| Shielding | Yes |
| Sterile | No |
| Total Cable Length | 11 ft |
| Trunk Cable Color | Gray |
| Trunk Cable Diameter | 5.00 mm |
| Trunk Cable Length | 8 ft |
| Trunk Cable Material | TPU Jacket |
| Warranty | 6 months |
| Weight | 0.2KG |
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | Aestiva/5, E-PRESTN, F-FM-00, M-PRESTN, Unity |
| Draeger | Narkomed 6400 |
| GE Healthcare > Critikon > Dinamap | Carescape B450, Carescape B650, Carescape B850, Procare B40 |
| GE Healthcare > Marquette | Dash 1000, Dash 2000, Dash 2500, Dash 3000, Dash 4000, Dash 5000, Dash PRO 2000, Dash PRO 3000, Dash PRO 4000, Eagle, Eagle Systems, MAC-Lab, PDM Module, Responder 2000, Responder 3000, Solar 3000, Solar 8000, Solar 9500, Tram 100, Tram 200, Tram 300, Tram 400, Tram 451, Tram 500, Tram 600, Tram 800, Unity Systems |
| GE Healthcare | Aisys CS2, Logiq 5, Logiq 7, Vivid 3, Vivid 7, Vivid e9, Vivid i |
*Disclaimer: All the registered trademarks, product names, models, etc. shown in the above contents are owned by the original holder or the original manufacturer. This is only used to explain the compatibility of the REDY-MED products, and nothing else! All the above information is for reference only, and should not be used as a working guide for medical institutions or related units. Otherwise, any consequences will be irrelevant to the company.
