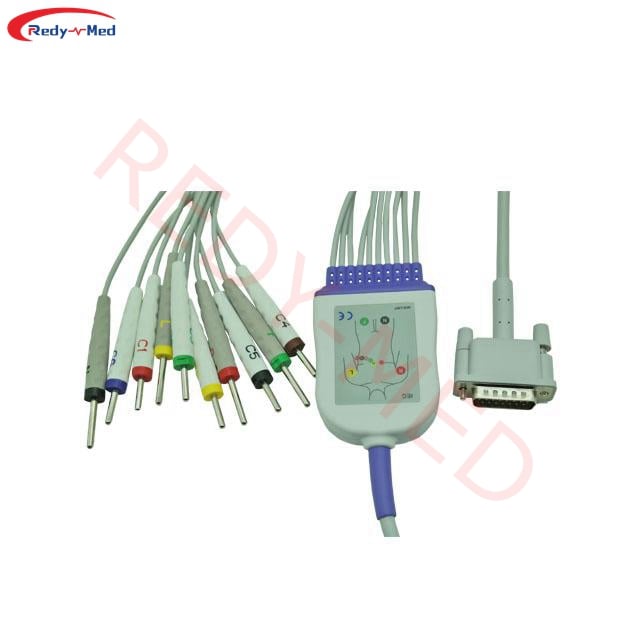

Home / Products / EKG / One-Piece EKG Cable
| Category | EKG |
|---|---|
| Certifications | FDA, CE, ISO13485,SFDA |
| Connector Distal | DB-15 Connector with Screws |
| Connector Proximal | Snap/Clip/Din 3.0/ Banana 4.0 |
| Latex-free | Yes |
| Lead Cable Color | Gray |
| Lead Cable Diameter | 3.00 mm |
| Lead Cable Material | TPU Jacket |
| Lead Color Coding | AHA/IEC |
| Lead Number | 10 |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult/Pediatric |
| Resistance | 20K Ohms |
| Sterile | No |
| Total Cable Length | 3.6M |
| Trunk Cable Color | Gray |
| Trunk Cable Diameter | 6 mm |
| Trunk Cable Material | TPU Jacket |
| Warranty | 6 months |
| Weight | 0.4kg |
| Manufacturer | Model |
|---|---|
| BTL | BTL-08 LT |
| Bionet | Cardio 7, CardioTouch 3000, Cardiocare 2000, Cardiocare 3000 |
| CardioTech | CRT-6D, CRT-6T, CRT-6U |
| Cardiovex | T600 Treadmill |
| Contec | ECG1200G, ECG600G |
| Del Mar | CardioCollect 12 |
| Dr. Lee | 120B, 310A, 310B |
| Mortara > Burdick | ELI 10, ELI 150, ELI 210, ELI 230, ELI 250, ELI 250C (non-USB), ELI 280, ELI 350, Eli 150RX |
| Mortara | AM12M (41000-037-50), IQ Classic, Surveyor S12/S19 |
| Philips | 200, 200i, Agilent 300PI, Agilent 300i, M1770A, M1771A, M1772A, Pagewriter 100, Pagewriter 200, Pagewriter 300pi, Pagewriter TC20 |
| Spacelabs | CardioDirect 12 |
| Welch Allyn | CP 10, CP 150, CP 20, CP 250, CP 50 |
| Woodway | Cortex CPX System |
Product No:

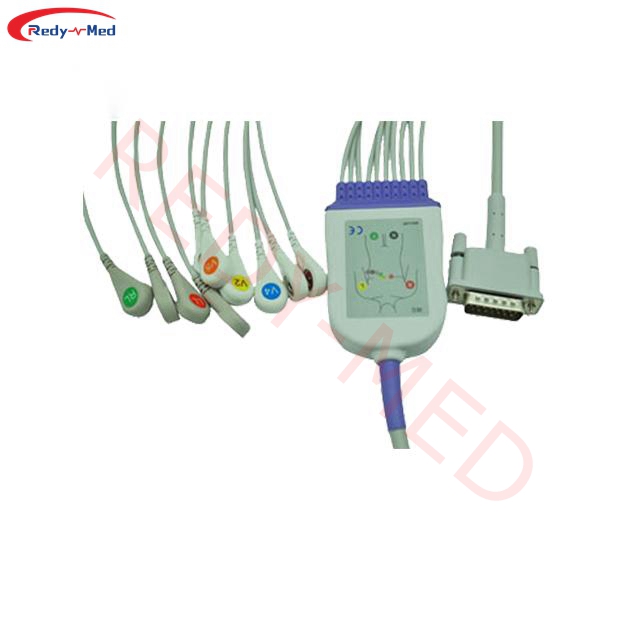

| 10 Lead,AHA,Snap | KC210SA-019D |
| 10 Lead,IEC,Snap | KC210SI-019D |

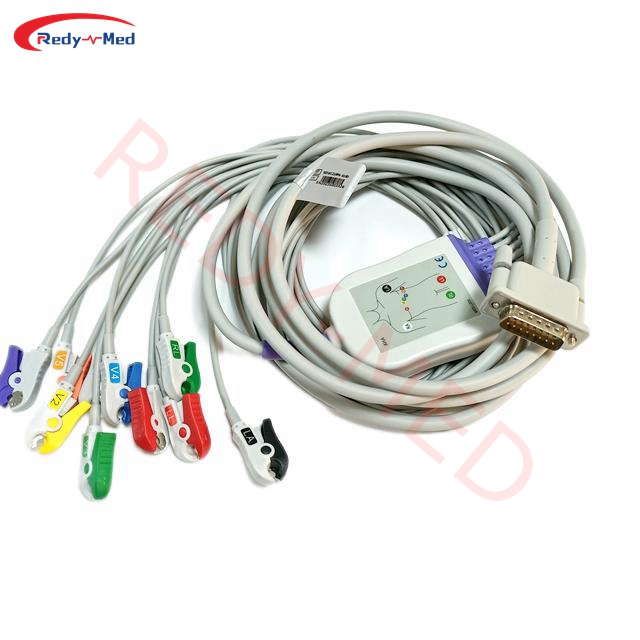

| 10 Lead,AHA,Clip | KC210PA-019D |
| 10 Lead,IEC,Clip | KC210PI-019D |

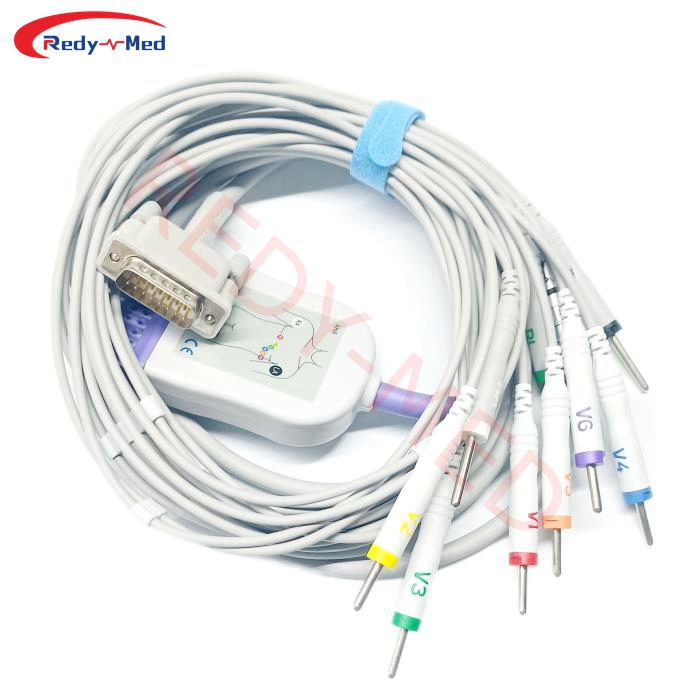

| 10 Lead,AHA,Din 3.0 | KC210SA-019D |
| 10 Lead,IEC,Din 3.0 | KC210SI-019D |

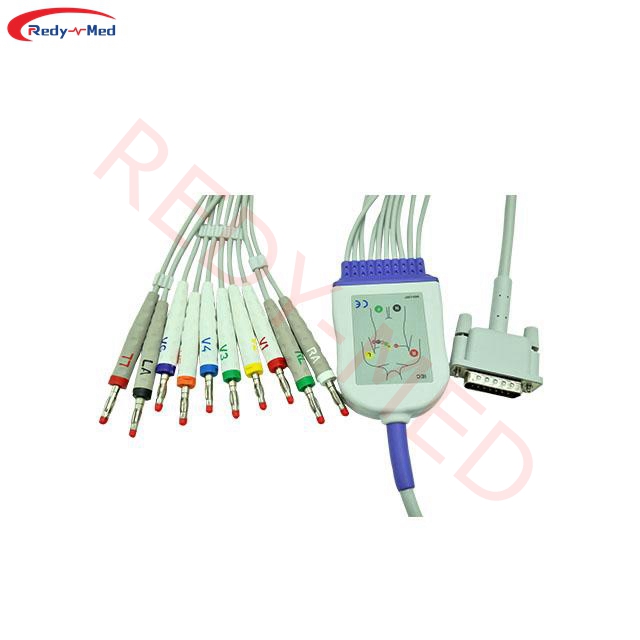

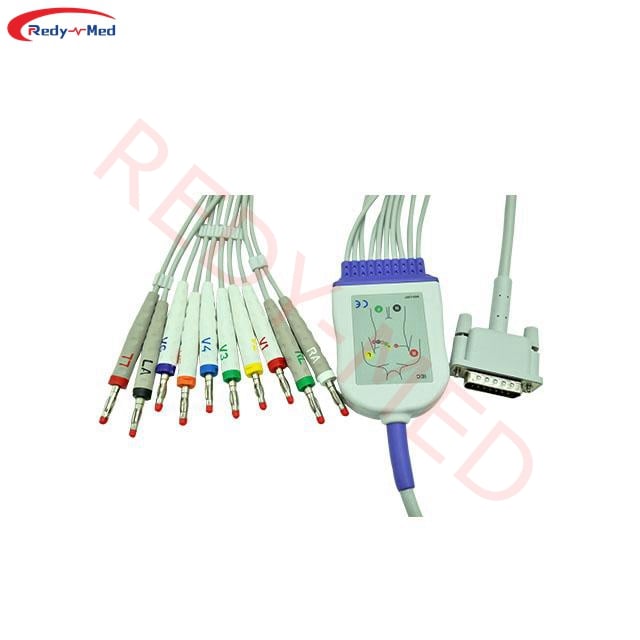

| 10 Lead,AHA,Banana 4.0 | KC210PA-019D |
| 10 Lead,IEC,Banana 4.0 | KC210PI-019D |
*Disclaimer: All the registered trademarks, product names, models, etc. shown in the above contents are owned by the original holder or the original manufacturer. This is only used to explain the compatibility of the REDY-MED products, and nothing else! All the above information is for reference only, and should not be used as a working guide for medical institutions or related units. Otherwise, any consequences will be irrelevant to the company.
