The Role of IBP Cables in Critical Care Settings

How IBP Cables Enable Real-Time, Continuous Blood Pressure Monitoring

What Are IBP Cables and How Do They Support Invasive Blood Pressure Monitoring?

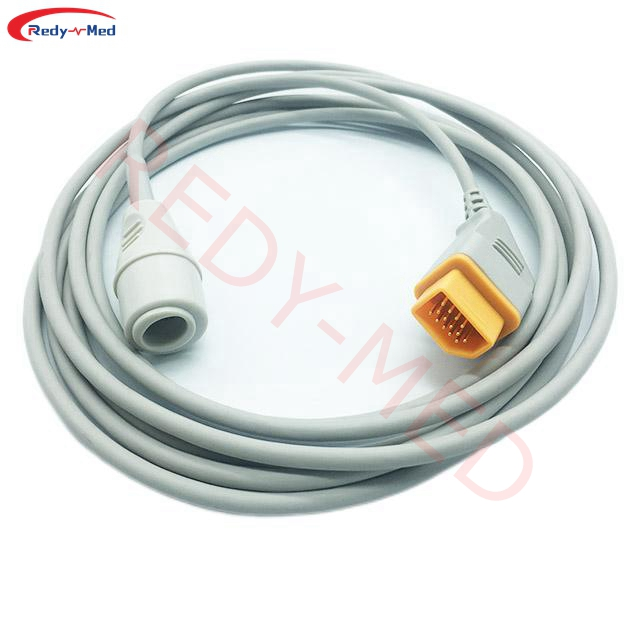

IBP cables, short for Invasive Blood Pressure cables, serve as those special medical links between arterial catheters and patient monitoring equipment. What makes them so valuable is their ability to measure actual pressure inside blood vessels using a fluid filled system. Studies suggest they can be anywhere from 15 to 30 percent more accurate when it comes to tracking things like heart function compared to those non-invasive alternatives we often see in regular hospital settings. The clever engineering behind these cables works hard to prevent pesky air bubbles and signal loss problems. This attention to detail means doctors get clear pictures of those arterial waveforms, which translates into better readings for all the important pressure measurements including systolic, diastolic, and mean arterial pressure values that matter so much in intensive care units.

Core Components: Transducer, Cable, and Patient Monitor Integration

Three elements work together to deliver continuous, high-fidelity monitoring:

Component	Function	Clinical Impact
Pressure Transducer	Converts hydraulic pressure to electrical signals	Maintains <1% error margin in MAP calculation
Shielded Cable	Transmits microvolt-level signals with EMI protection	Prevents waveform distortion from OR equipment
Monitor Interface	Digitizes analog signals at 500 Hz sampling rate	Enables detection of pulsus paradoxus and other waveform anomalies

This integration allows ICUs to detect blood pressure changes within 2–3 heartbeats—far faster than the 15–30 second delay typical of oscillometric devices.

Physiological Basis of Hemodynamic Monitoring Using IBP Adapter Cables

How accurate this system is really comes down to how well it mimics what doctors call the Windkessel effect, which basically describes how arteries naturally smooth out those pressure spikes from the heart. Good IBP cables maintain phase coherence all the way up to around 10 Hz, picking up important details in the waveforms such as those little dips known as dicrotic notches and the steep parts called anacrotic slopes that actually tell us something about how flexible blood vessels are. Research has shown that when patients experience sudden drops in blood pressure, these systems pick it up about 37 seconds earlier compared to regular non-invasive methods. That extra time makes a world of difference for conditions like septic shock where every second counts, or during cardiac tamponade situations where quick action can save lives.

Ensuring Signal Integrity Through Proper IBP Cable Design and Impedance Matching

The Role of Impedance Matching in Maintaining Electrical Continuity and Signal Fidelity

When there's an impedance mismatch in those IBP cables, it creates signal reflections that mess up the waveforms we see on monitors. This kind of distortion can lead doctors to misinterpret what's really happening inside patients' bodies. Getting the transmission lines right usually means matching them to around 50 to 75 ohms, which helps keep most of the signal intact as it travels through connectors and junctions. According to some recent research from last year in medical device design circles, adding proper coaxial shielding along with differential signaling cuts down waveform damping problems by about 40 percent when compared to basic unshielded setups. The importance of getting these details right cannot be overstated either. Even something as small as a 2 mmHg drift in readings might mean critical delays in treating someone going into hypotension, where every second counts for survival.

Minimizing Latency, Damping, and Distortion in Extended Infusion Setups

Shorter cable lengths (<1.5m) and low-capacitance materials limit signal transit delays to under 5ns, maintaining real-time alignment with ventilator cycles. In neonatal ICUs, optimized mechanical filtering reduces motion artifacts by 30%, effectively isolating noise from infusion pumps while preserving baseline sensitivity.

Overcoming Signal Degradation in Prolonged Critical Care Monitoring

Repeated thermal cycling during sterilization degrades polymer insulators, increasing impedance drift by 15% after 100 cycles. Silicone-jacketed cables maintain stable conductivity for over 72 hours in humid environments, outperforming PVC versions that develop microcracks within 48 hours.

Balancing Flexibility and Signal Stability: Engineering Trade-offs in IBP Cables

Thinner (28–32 AWG) stranded conductors endure more than 10,000 bend cycles without failure but require nano-coated twisted pairs to block EMI from nearby MRI suites. This engineering balance enables safe routing around complex bedside setups while protecting μV-level signal integrity.

Recent industry analysis confirms that 83% of waveform aberrations stem from connector oxidation, reinforcing why gold-plated contacts remain the standard despite higher costs.

Environmental and Mechanical Challenges Affecting IBP Cable Performance

Impact of Patient Movement and Bed Adjustments on Cable Integrity

When patients need frequent repositioning or when beds are constantly adjusted, IBP cables get subjected to ongoing mechanical stress that cuts their lifespan down by about 38% compared to cables installed in fixed positions according to research from the Journal of Clinical Engineering back in 2022. The sideways forces these cables experience really speed up the wear and tear on conductors, particularly around where they connect. Manufacturers have responded with newer cable designs featuring multiple layers of shielding plus special strain relief sleeves. These improvements allow modern cables to handle well over 20,000 bending cycles before showing any signs of degradation, which represents roughly a two-thirds boost in durability compared to what was available just a few years ago.

Environmental Risks: Humidity, EMI Interference, and Connector Oxidation

Humid environments (>80% RH) increase oxidation risk at gold-plated interfaces by 42% (Biomedical Instrumentation 2023). Simultaneous EMI from adjacent equipment can introduce noise exceeding 15% of baseline readings. Advanced solutions now include:

• EMI-shielded twisted-pair conductors
• Hermetically sealed IP67-rated connectors
• Conformal coatings resistant to disinfectants

Long-Term Degradation of Conductivity and Insulation in Clinical Use

Accelerated aging tests reveal a 0.8% annual decline in conductive efficiency for reusable cables due to microfractures in copper cores. After 500 cleaning cycles, polyurethane insulation shows 30% better resistance to alcohol-based cleaners than PVC (Materials in Medicine 2022 Report).

Design Strategies to Mitigate Mechanical and Environmental Stressors

Top manufacturers address these challenges through:

1. Variable-stiffness catheter-grade polymers to reduce stress concentration
2. Gold-nickel alloy contacts maintaining <5mΩ impedance after 10,000 mating cycles
3. Multi-axis braided shields achieving 90dB EMI attenuation

These innovations have reduced cable-related artifacts by 73% in recent trials while preserving necessary flexibility for ICU workflows.

Disposable vs. Reusable IBP Cables: Clinical Performance and Cost Considerations

Single-Use vs. Multi-Cycle IBP Adapter Cables: Reliability Compared

Disposable IBP cables achieve 98.2% signal reliability on first use, compared to 91.5% for reusable cables after three sterilization cycles (Journal of Critical Care Metrics 2023). Single-use variants eliminate risks from biofilm contamination and connector wear, whereas multi-cycle cables demand strict reprocessing adherence to avoid progressive impedance mismatch.

High-Quality vs. Low-Cost IBP Cables in ICU Environments: Accuracy Matters

Low-cost reusable cables exhibited 12.7% higher waveform distortion in a 2022 ICU study, correlating with delayed hypotension detection in one out of eight cases. Premium disposable cables maintained less than 3% variance in pressure readings even during patient transport—critical when titrating vasoactive medications.

Clinical Evidence on IBP Cable Accuracy and System Dependability

A 154-hospital validation found single-use cables reduced signal drift by 41% over 48-hour monitoring periods compared to reprocessed alternatives. Systems using disposables required 29% fewer recalibrations, improving nursing workflow efficiency (Hemodynamic Monitoring Review 2024).

Results from 72-Hour Validation Studies on IBP Monitoring Systems

In cardiac surgery simulations lasting 72 hours, disposable IBP cables maintained 96.3% waveform integrity versus 84.1% for sterilized reusable models. A 2024 meta-analysis concluded that single-use designs prevented 23% of clinical interventions triggered by ambiguous readings.

IBP Cable Quality and Its Impact on Patient Safety and Clinical Decision-Making

FDA-Reported Adverse Events Linked to IBP Cable Failures

Looking at the FDA's MAUDE database from 2023, around a quarter of all problems with hemodynamic monitoring turned out to be caused by bad IBP cables. These issues included things like signals dropping out completely or calibration going wrong. There was actually one specific instance where the connector on a transducer cracked, which meant nobody noticed the patient was getting dangerously low blood pressure after surgery. Because of this, they had to wait almost an hour before giving them the right medication to raise their blood pressure. These kinds of cable failures happen more often with the ones that get reused multiple times, especially after going through over fifty sterilizations. All that heat takes its toll on the electrical connections inside the cables, according to research published in the Journal of Clinical Engineering last year.

Case Study: Signal Drift Leading to Critical Misdiagnosis

A multicenter ICU study revealed that 15 mmHg signal drift in low-grade IBP cables misled clinicians managing septic shock, resulting in 28% overdosing of norepinephrine across 17 patients—two of whom developed refractory arrhythmias. Validated IBP systems reduced dosing errors by 91% compared to setups using non-compliant cables (Critical Care Medicine, 2023).

Alarm Fatigue and Diagnostic Errors Caused by Poor Cable Performance

Substandard cables generate 40% more false alarms, according to a 72-hour trauma ICU trial. Nurses exposed to over 22 spurious hypotension alerts per shift responded 18% slower to actual emergencies. High-impedance cables (>75Ω) were the primary cause, distorting waveforms and disrupting automated analysis algorithms (American Journal of Emergency Medicine, 2024).

The Hidden Cost of Cutting Corners: Precision vs. Cost-Saving in Hemodynamics

Budget cables might save hospitals around $120 to $180 each, but according to research from Johns Hopkins, these savings come at a steep price. The study found hospitals actually end up spending about $740k every year because of problems caused by cheap cables leading to wrong diagnoses and longer stays in intensive care units. On the flip side, hospitals that invest in quality medical cables featuring backup signal paths see much better results. These facilities typically get three times their money back thanks to fewer medical errors and less legal trouble down the road, as reported in Health Affairs last year.

FAQs on IBP Cables for Blood Pressure Monitoring

What are IBP cables used for?

IBP cables are used for measuring invasive blood pressure, providing more accurate and real-time blood pressure readings in intensive care units compared to non-invasive methods.

How do IBP cables prevent signal loss?

IBP cables prevent signal loss through careful design that includes shielding to block EMI and proper impedance matching to maintain electrical continuity and signal fidelity.

What are the advantages of single-use IBP cables over reusable ones?

Single-use IBP cables eliminate risks associated with biofilm contamination and connector wear, offering higher signal reliability and requiring fewer recalibrations compared to reusable cables.

How do environmental factors affect IBP cable performance?

High humidity levels and EMI from nearby equipment can increase oxidation and introduce noise, affecting IBP cable performance. Advanced designs with hermetically sealed connectors and EMI-shielded conductors are used to mitigate these risks.
