Understanding ECG Cables and Their Role in Cardiac Monitoring
What Are ECG Cables and How Do They Function?
The ECG cables serve as the main link connecting patients to those cardiac monitoring systems, basically carrying all those electrical signals from where the electrodes stick on the skin right into the machine itself. What makes these cables work so well? They're built with special shielding around the wires, have proper connectors at each end, and come wrapped in durable covers that can handle movement without breaking down. So when those sticky pads pick up what's going on inside someone's heart, it's actually these cables doing most of the heavy lifting to get that information across for doctors to see as waveforms on screen. According to research published last year in the Journal of Clinical Engineering, nearly one out of every six problems seen during cardiac monitoring comes down to old worn out cables or connections that aren't seated properly anymore. That really shows how important getting good quality cables remains if we want reliable readings for making proper medical decisions.
The Evolution of ECG Patient Cables in Diagnostic Applications
Back in the day, early ECG systems came with those stiff, disposable cables that just didn't work well at all when it came to picking up clean signals. These days though, we see much better options on the market. The newer models are lighter weight and can be used multiple times thanks to improved construction techniques. They also have extra protection against electromagnetic interference which is really important in places like intensive care units where there's so much electronic equipment running around. Some manufacturers now make their cables from medical grade silicone material that stays flexible even after being bent thousands upon thousands of times according to industry standards. This kind of improvement isn't just about making things last longer either. It actually makes a big difference for healthcare professionals who need dependable readings while moving around patients during critical moments.
Signal Transmission Accuracy in Medical Devices: A Foundational Principle
Getting accurate signals is absolutely essential when diagnosing heart problems. Good quality ECG cables keep their impedance under 5 kilo ohms so they don't mess up the waveforms, whereas cheaper cables tend to pick up all sorts of noise that looks suspiciously like irregular heartbeats. Research from 2022 found that those fancy shielded cables with the twisted pairs cut down on movement related errors by around two thirds compared to regular ones. Doctors need this kind of clear signal to tell the difference between harmless quirks in the readings and serious issues such as STEMI events or dangerous cases of atrial fibrillation where quick action really matters.
Types of ECG Cables and Their Clinical Applications by Lead Configuration
Comparative Analysis of 3-Lead, 5-Lead, and 12-Lead ECG Configurations

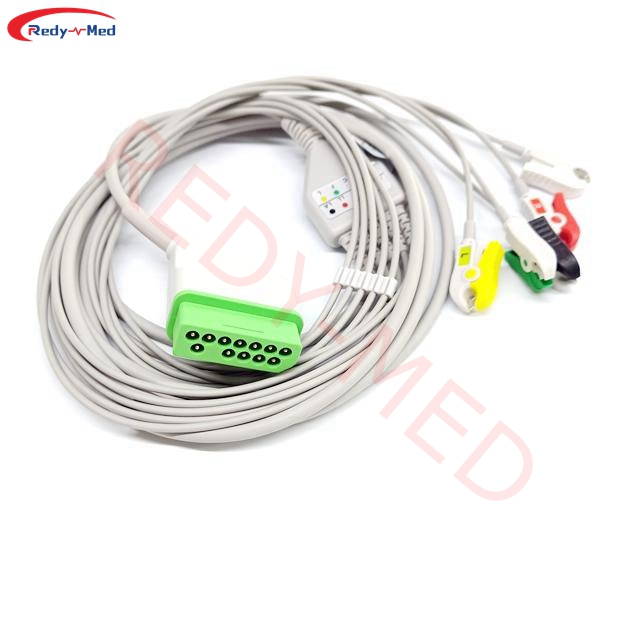

Medical professionals classify ECG cables based on how many leads they have, typically looking at three main types: 3-lead, 5-lead, and the full 12-lead system. The 3-lead setup is pretty straightforward stuff for tracking heart rhythms, often used when patients are moving around or recovering after surgery. When we step up to 5 leads, doctors get more information from different parts of the chest area, which helps spot problems like irregular heartbeats or signs of poor blood flow earlier on. Most hospitals still rely heavily on those 12-lead systems though because they give such detailed pictures of what's happening inside the heart. These systems check electrical signals across twelve different spots in the body, making them really good at finding heart attacks or issues with how electricity travels through the heart muscle. According to some numbers released last year by Yahoo Finance, about 58 out of every 100 clinics actually use these comprehensive 12-lead setups for their diagnoses.
Matching ECG Cable Types to Patient Monitoring Needs
Selecting the right lead configuration directly impacts diagnostic accuracy:
- 3-lead: Continuous monitoring in non-critical settings (e.g., general wards, telehealth)
- 5-lead: Intermediate-risk patients requiring arrhythmia detection or ST-segment monitoring
- 12-lead: Emergency departments, cardiology units, and cases requiring detailed ischemia localization
Hospitals report a 40% reduction in repeat testing when matching lead configurations to specific clinical scenarios, as overuse of complex systems can introduce unnecessary data noise.
Case Study: Improved Diagnosis with 12-Lead ECG in Emergency Settings
A 2024 study of 1,200 emergency room patients revealed that 12-lead ECG cables reduced misdiagnosis rates by 32% compared to 5-lead systems when detecting posterior myocardial infarctions. The additional leads provided critical insights into often-overlooked cardiac regions, shortening time-to-treatment by an average of 19 minutes.
How ECG Cable Quality Impacts Reading Accuracy and Diagnostic Reliability
How Cable Integrity Influences Signal Transmission Accuracy
The cables used in ECG monitoring serve as the main pathway for sending tiny electrical signals from skin electrodes to heart monitoring equipment. When these cables start to show signs of wear like damaged insulation or corroded connectors, they create spots where signals can leak out. This leads to messy readings that mess up important parts of the ECG waveform like the P-wave and ST-segment which doctors rely on to spot irregular heart rhythms. Research published last year in Biomedical Instrumentation & Technology found something concerning: when conductors inside the cables wore down by about 30%, background noise jumped up nearly half. And this wasn't just theoretical stuff happening in labs either. Clinicians actually saw more false alarms about possible heart problems during real patient tests because of this increased noise level.
Data Point: Error Rates in ECG Readings Due to Substandard Cables
Clinicians using non-shielded ECG cables report 22% higher signal dropout rates during patient movement compared to medical-grade counterparts (Cardiac Diagnostics Association 2024). This translates to measurable diagnostic impacts:
- 14% of emergency room tachycardias were misclassified due to electromyographic noise
- 9% longer interpretation times per study when using cables exceeding 3-year service life
Reusable vs. Disposable ECG Lead Wires: Performance and Consistency Trade-offs
While reusable cables reduce per-use costs by 60%, their 12-month tensile strength declines 38% faster than single-use designs in high-turnover ICUs. Disposable variants eliminate biofilm risks but show 11% higher impedance variance across manufacturing batches according to ISO 60601-2-25 testing protocols.
Best Practices for Ensuring Consistent ECG Reading Accuracy
- Monthly cable flexion tests: Detect early-stage conductor fractures using ASTM F2182-19a signal continuity checks
- Shielded routing paths: Reduce 50/60Hz interference by 90% through separation from IV pumps and defibrillators
- Quarterly impedance validation: Maintain <500Ω electrode-to-monitor resistance across all leads
- Strain relief protocols: Implement clip-on weight limiters to prevent connector joint fatigue
These protocols reduced false arrhythmia alarms by 31% in a 12-hospital quality initiative (2024 ECG Optimization Report).
Durability, Safety, and Patient Outcomes Linked to ECG Cable Performance
ECG cables act as vital links in heart monitoring systems, where their durability and reliability can make all the difference between accurate readings and missed diagnoses. Good quality cables made from stuff like TPU or silicone hold up against the constant wear and tear in emergency rooms and intensive care units without losing signal clarity, which is absolutely essential when trying to spot irregular heartbeats or signs of poor blood flow. Standards bodies have set strict requirements for how many times these cables can be bent before breaking down (around 50 thousand cycles) and how much force they need to handle (about 25 Newtons). Hospitals know this matters because when cables start failing with cracked insulation or loose connections, research indicates around 12% more errors appear in readings that look suspiciously like real heart problems. Take one recent case from 2023 where a cable issue caused doctors to wrongly administer clot-busting drugs based on what turned out to be a faulty STEMI reading. The financial impact shouldn't be overlooked either. Replacing broken cables ends up costing three times what regular maintenance would cost, and patients often stay in the hospital an extra day and a half when monitoring equipment isn't working properly. With hospitals increasingly relying on long-term remote monitoring solutions, investing in tough ECG cables isn't just smart money management anymore—it's literally a matter of life and death for countless patients every year.
FAQs About ECG Cables
What is the main function of ECG cables?
ECG cables serve as the main link between patients and cardiac monitoring systems, transmitting electrical signals from the electrodes on a patient's skin to the monitoring equipment.
How do ECG cables impact diagnostic accuracy?
High-quality ECG cables are critical for accurate signal transmission. They prevent noise interference and ensure the reliability of ECG waveforms, which are essential for diagnosing cardiac conditions.
What are the differences between 3-lead, 5-lead, and 12-lead ECG setups?
3-lead ECGs are used for basic heart rhythm tracking, 5-lead setups provide more detailed chest area readings, and 12-lead systems offer comprehensive evaluations across twelve body locations, essential for detecting heart attacks or electrical conduction issues.
